Description

SPECIFICATIONS

Application: Computer

Brand Name: Voktta

Choice: yes

Condition: New

Hign-concerned Chemical: None

Model Number: TDA7294

Origin: Mainland China

Package: TQFP

Type: Module

is_customized: Yes

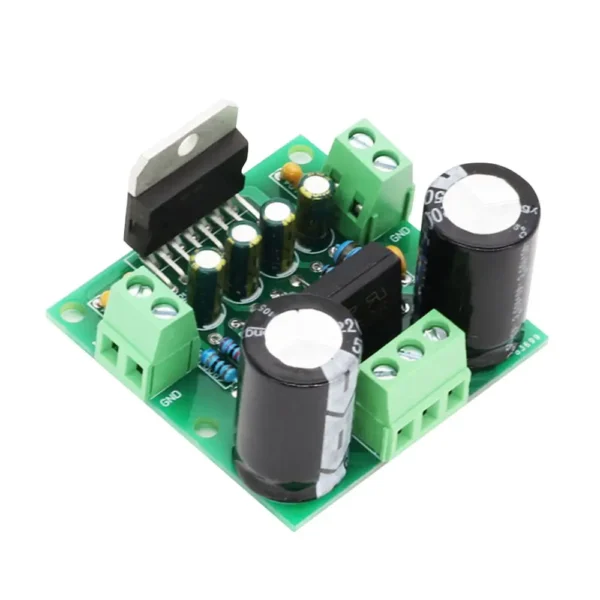

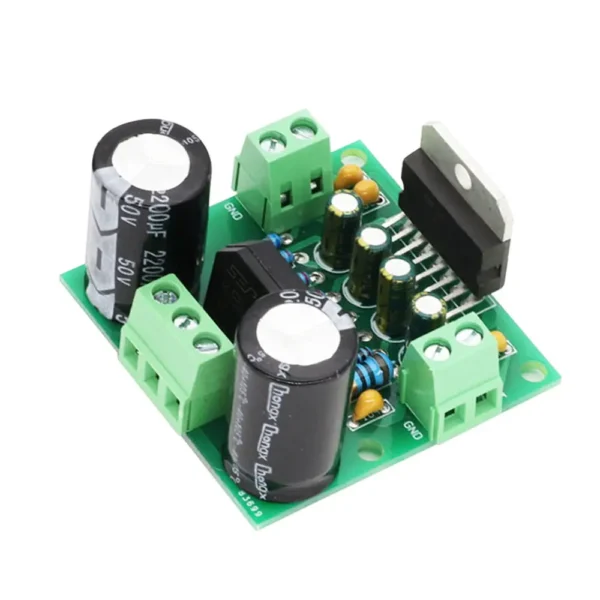

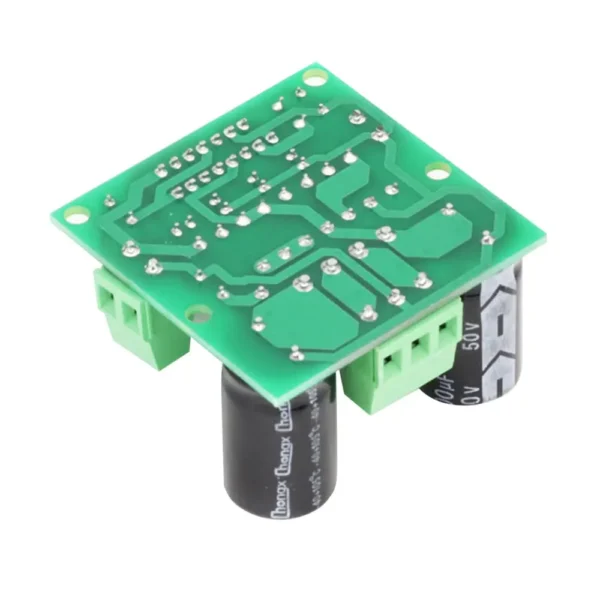

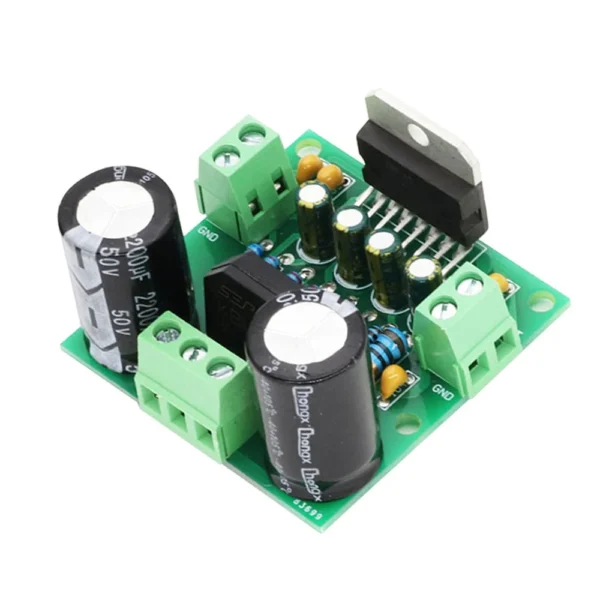

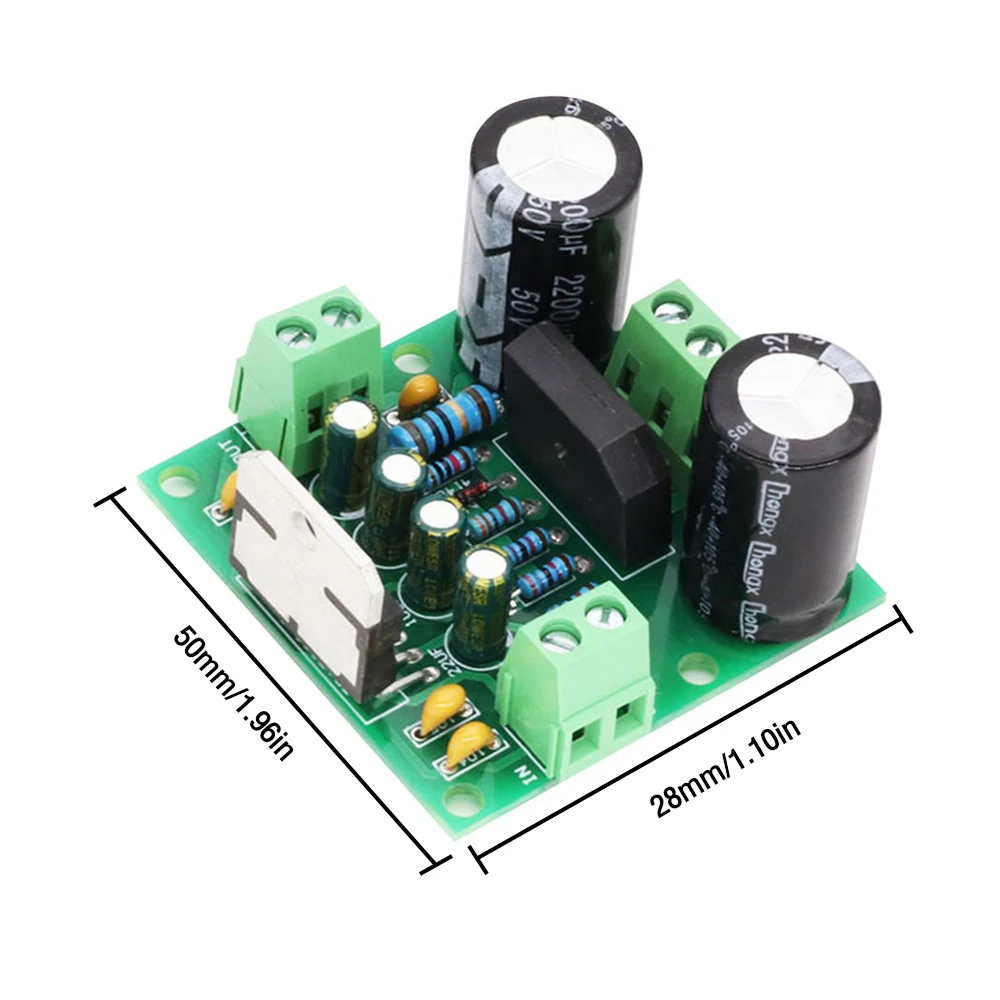

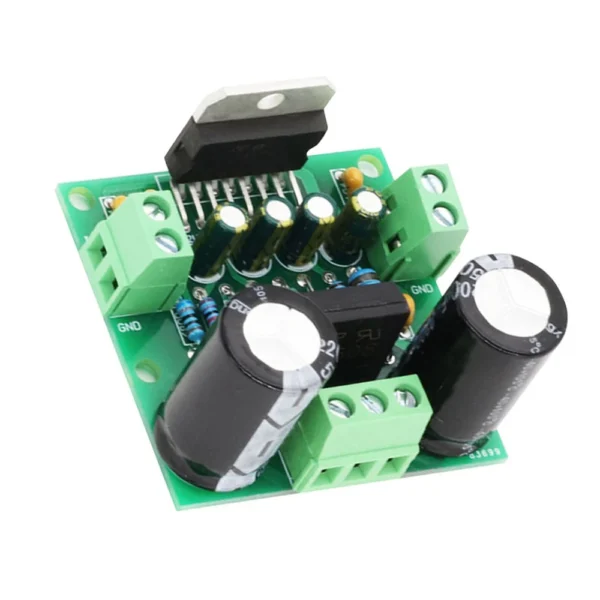

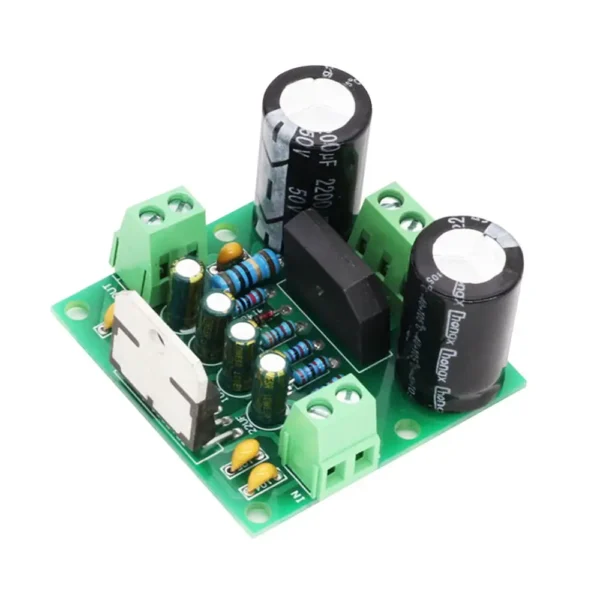

TDA7294 Mono Digital Power Amplifier Board HiFi Audiophile 100W High Power Hi-Fi Sound Amplifier Module

Product features:

1. Adopt high quality chip: TDA7294

2. The product is made of high quality materials, quality assurance

3. Product performance is stable and reliable, can easily promote more than 100W speaker

4. The product is very suitable for DIY enthusiasts

5. High-fidelity, mono amplifier board

Product parameters:

Filtering using a voltage of 50V capacity of 2200uf large electrolytic

Supply voltage: dual 12-36V ring cow, recommended use of dual 32V ring cow

Output power: 85W * 1 undistorted rated power, peak power 100W

Can easily drive more than 100W speakers

Speaker impedance: 4-8 ohms

Product Notes:

Be sure to install a heat sink, otherwise it will heat up badly leading to burn out or blow up!

Must use a 3 wire transformer, dual 12-32 are fine, you must attach your own heatsink, DC and battery will not work, connect it and it will blow up, dual DC and dual battery will not work, it will burn when it is powered up.

Shipping list:

Module X1
